Diamond Lattice Grille - STL 3D Model for CNC

Category

Diamond Lattice Grille - STL 3D Model for CNC 5.0

Popular

5.0 (6 reviews)

Downloadable Product code: 18146

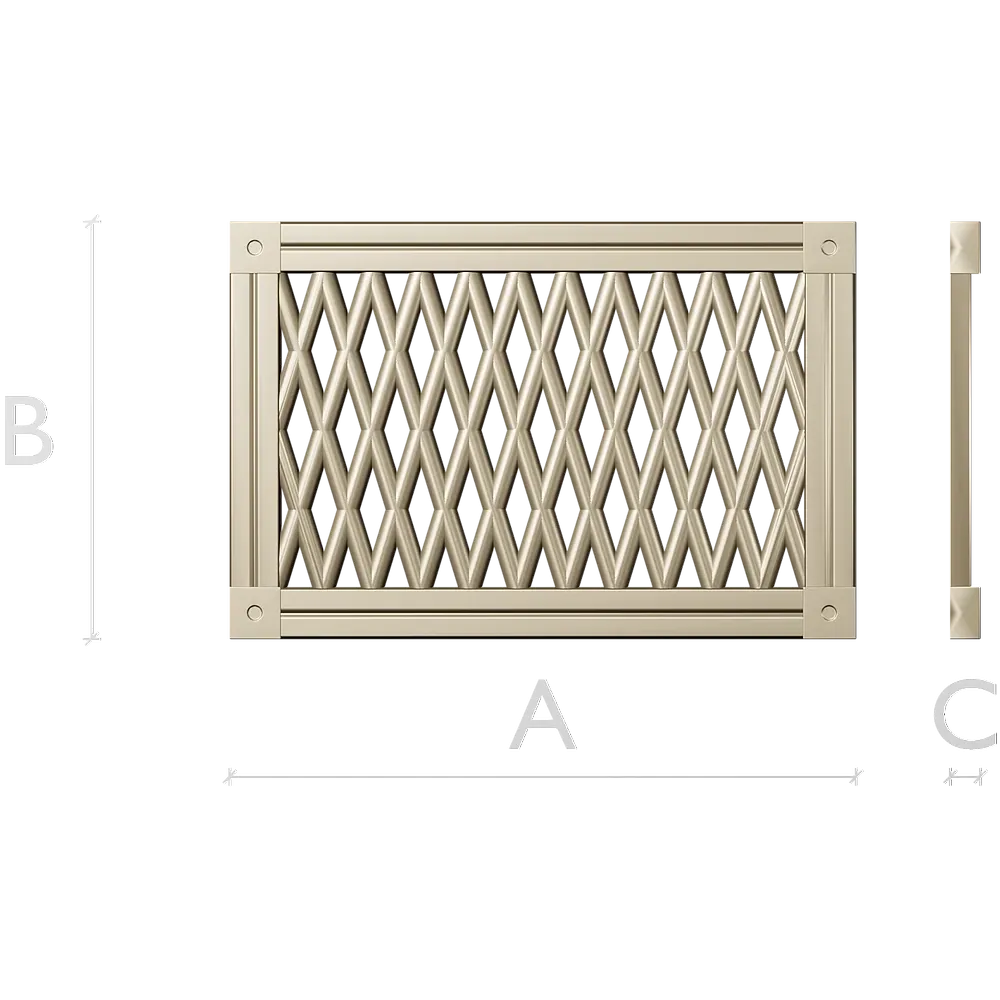

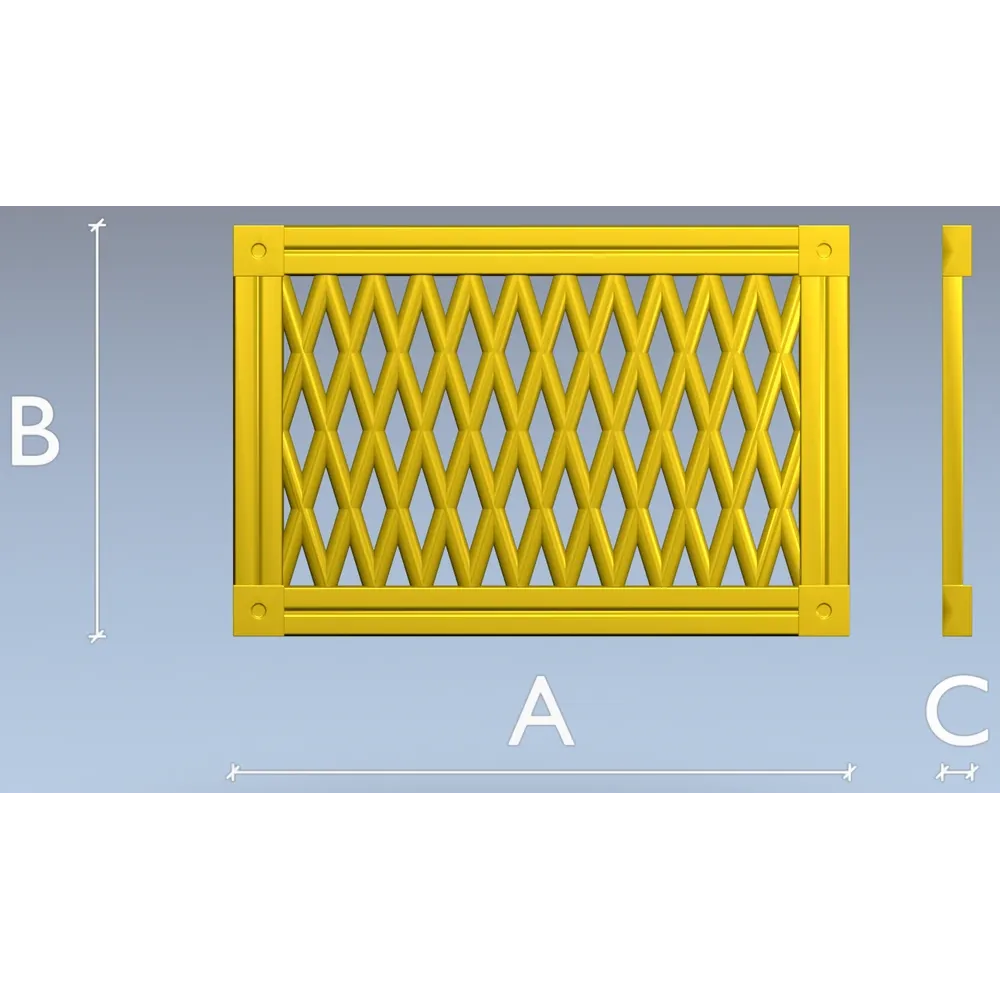

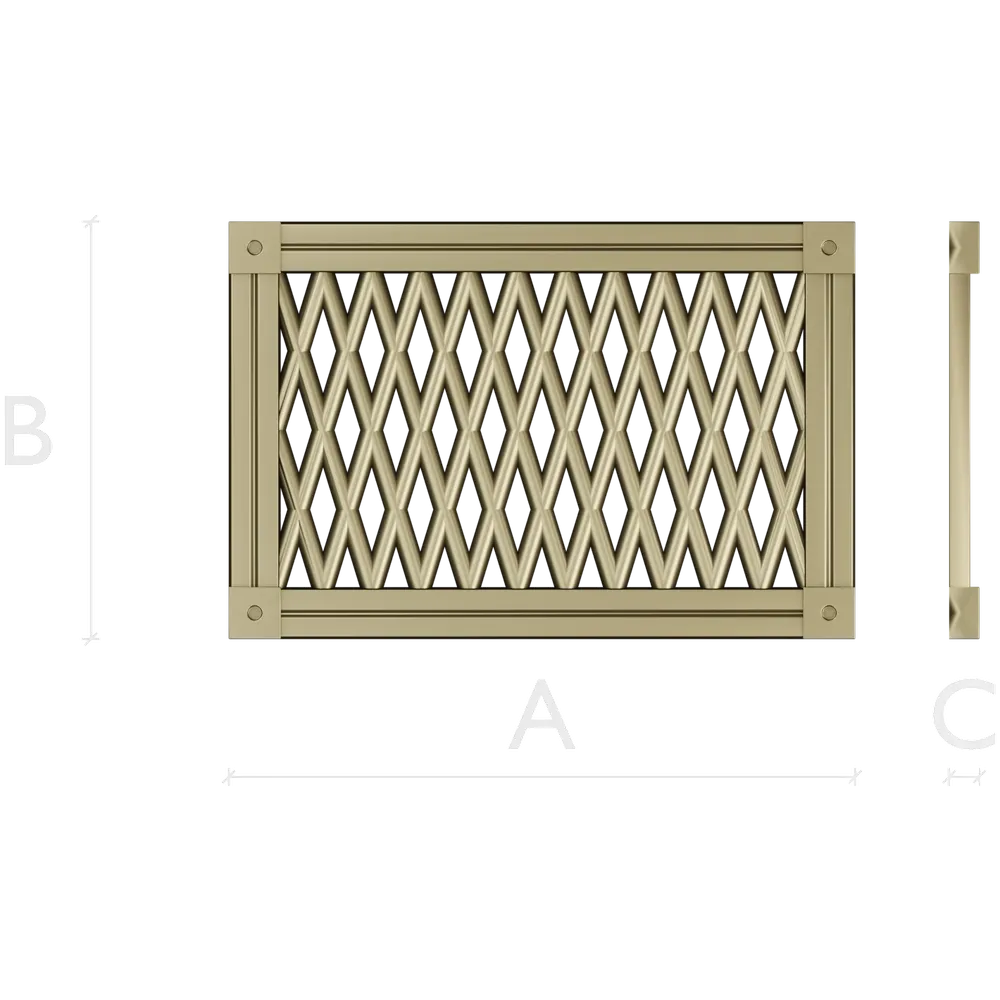

STL dimensions

X (Length)300 mm	Y (Height)200 mm	Z (Depth)15 mm
STL model weight1 MB Dimensions are shown for your convenience. You can scale the model to any size.

Description

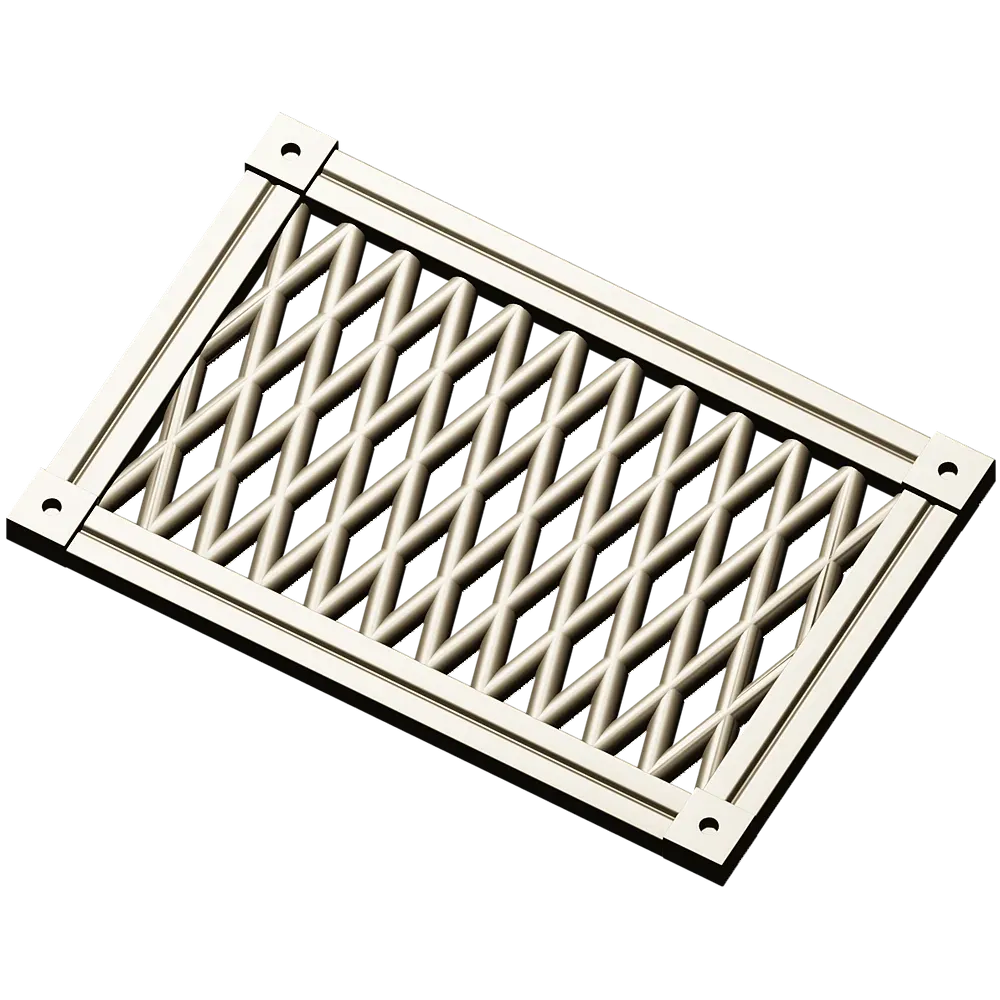

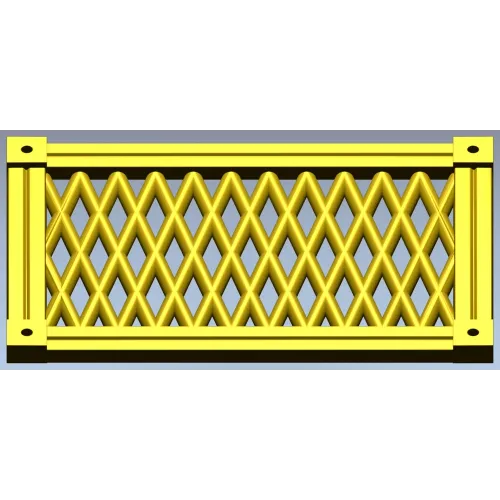

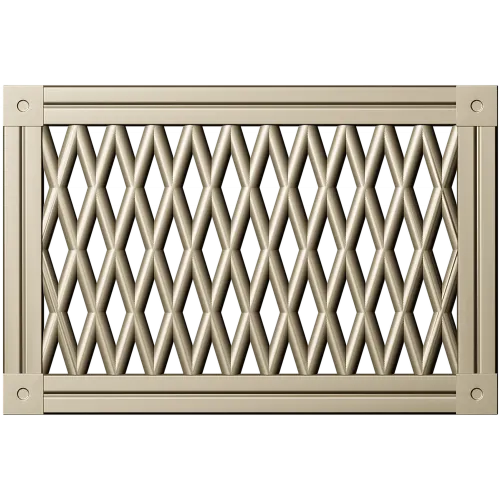

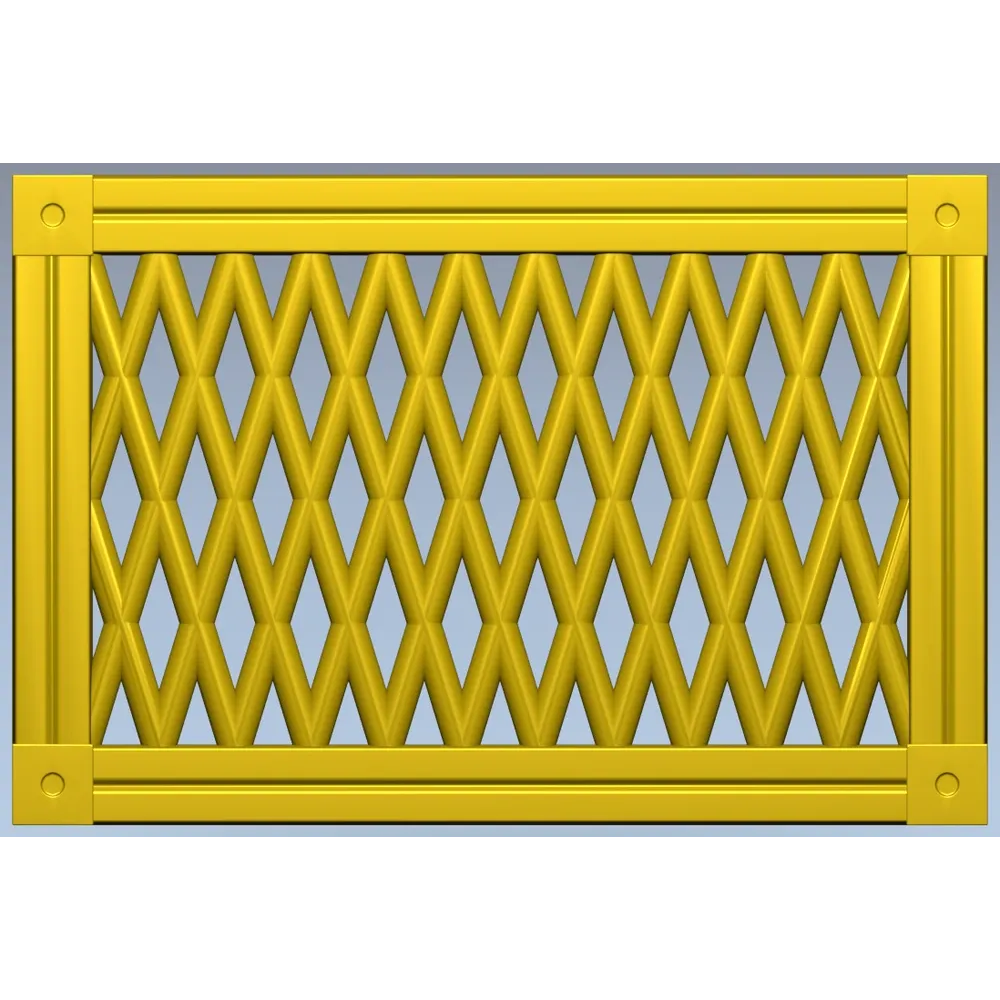

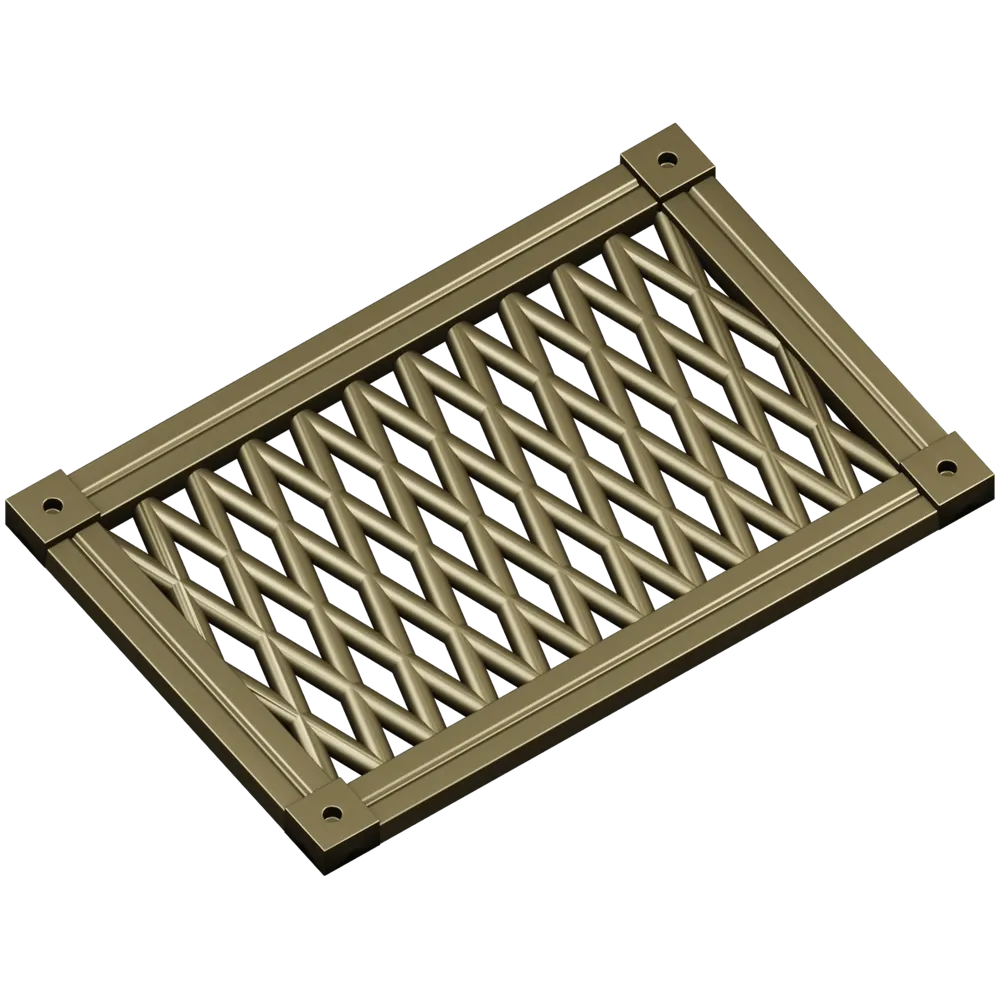

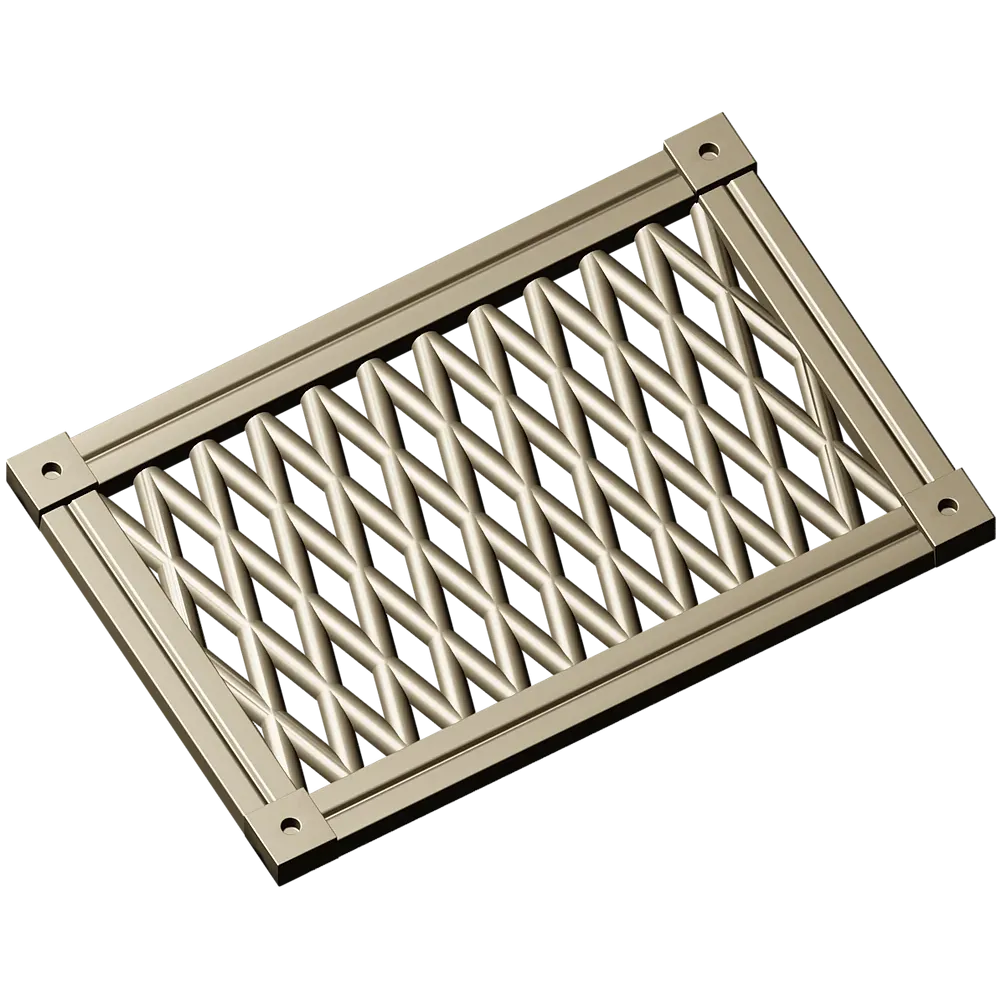

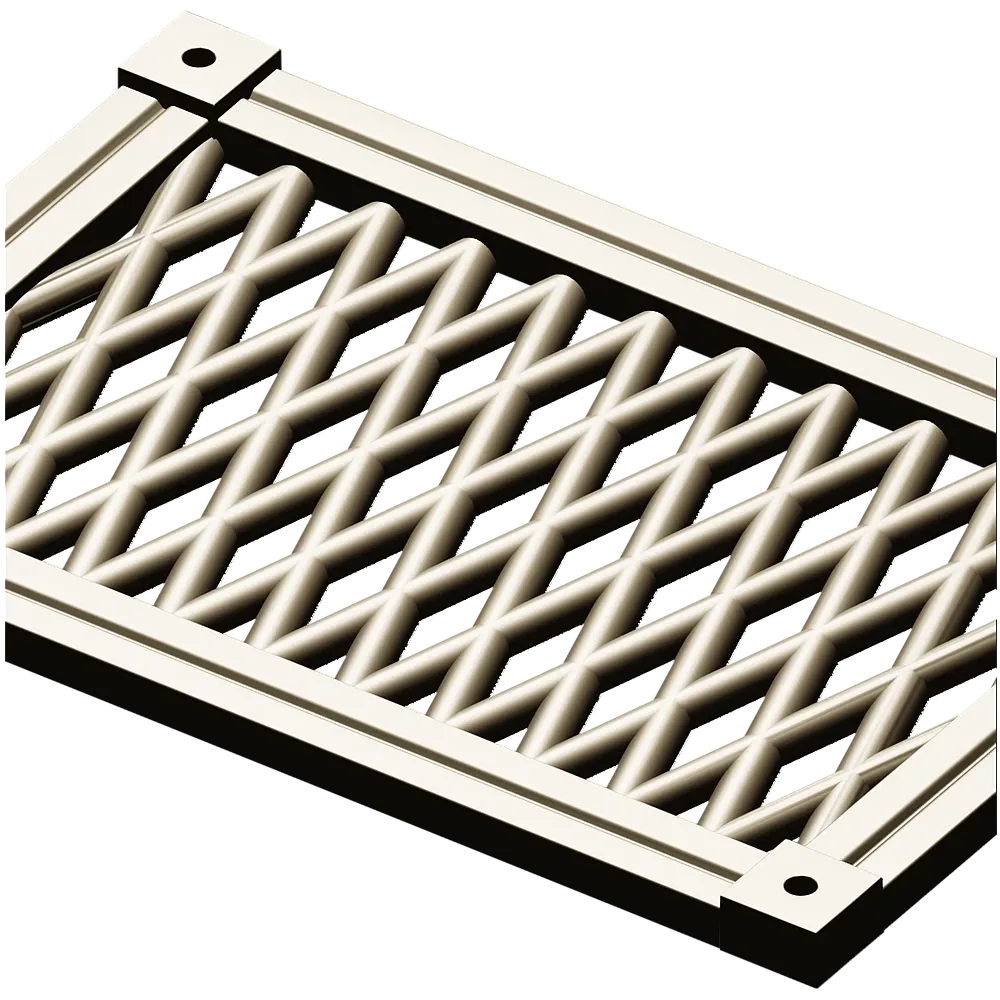

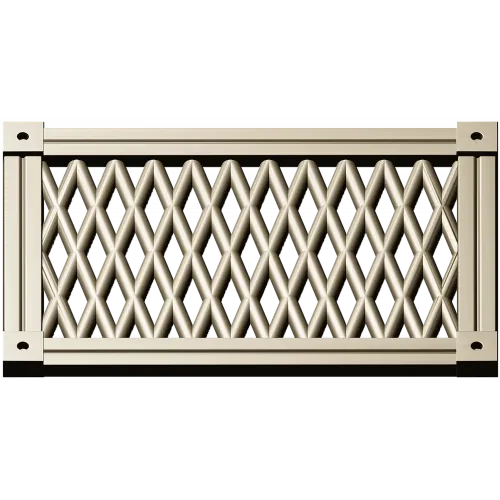

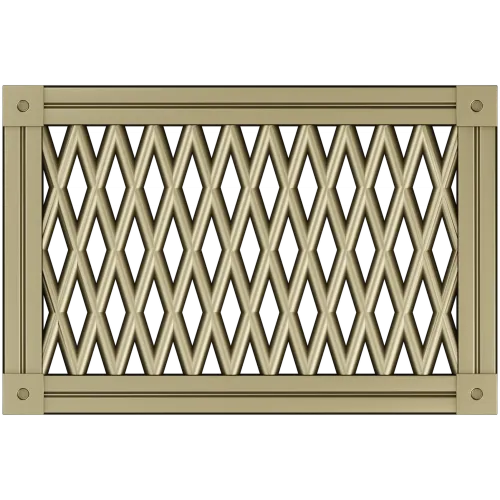

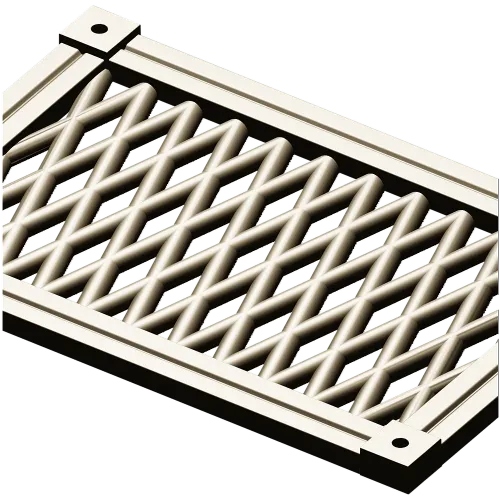

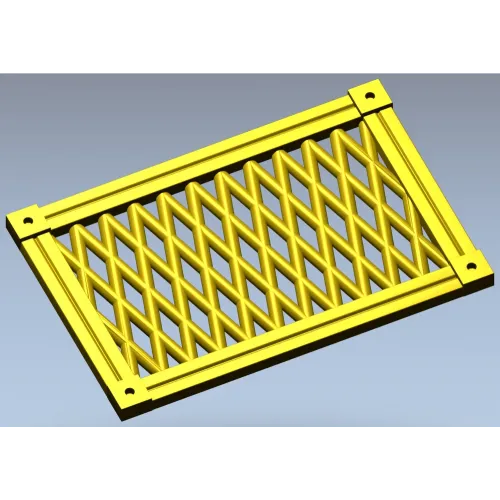

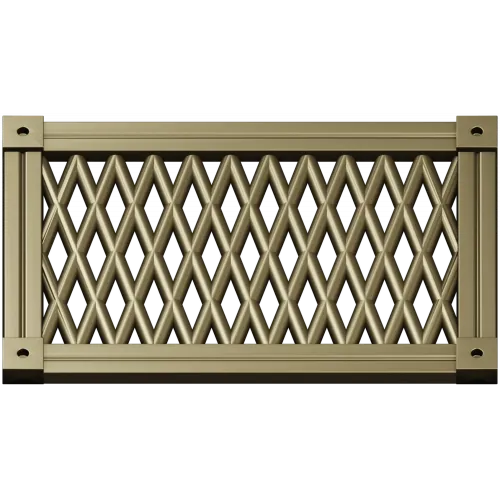

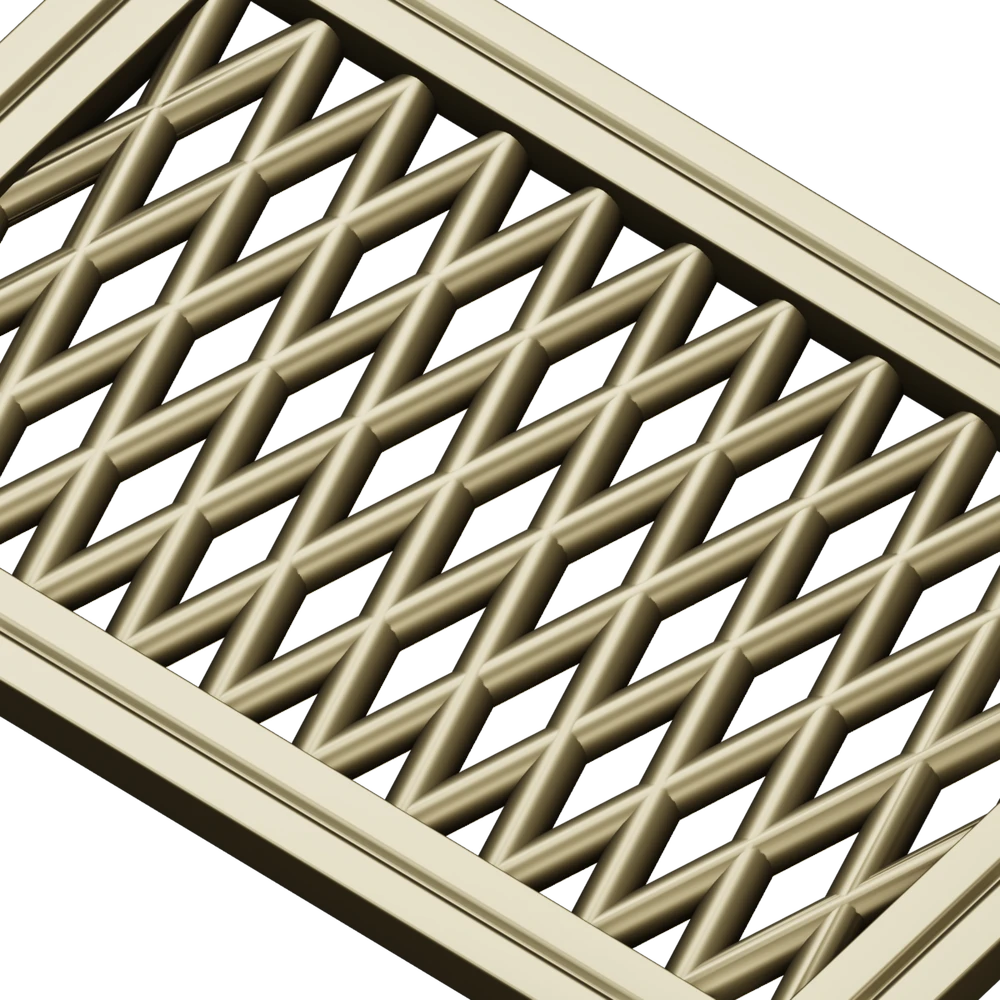

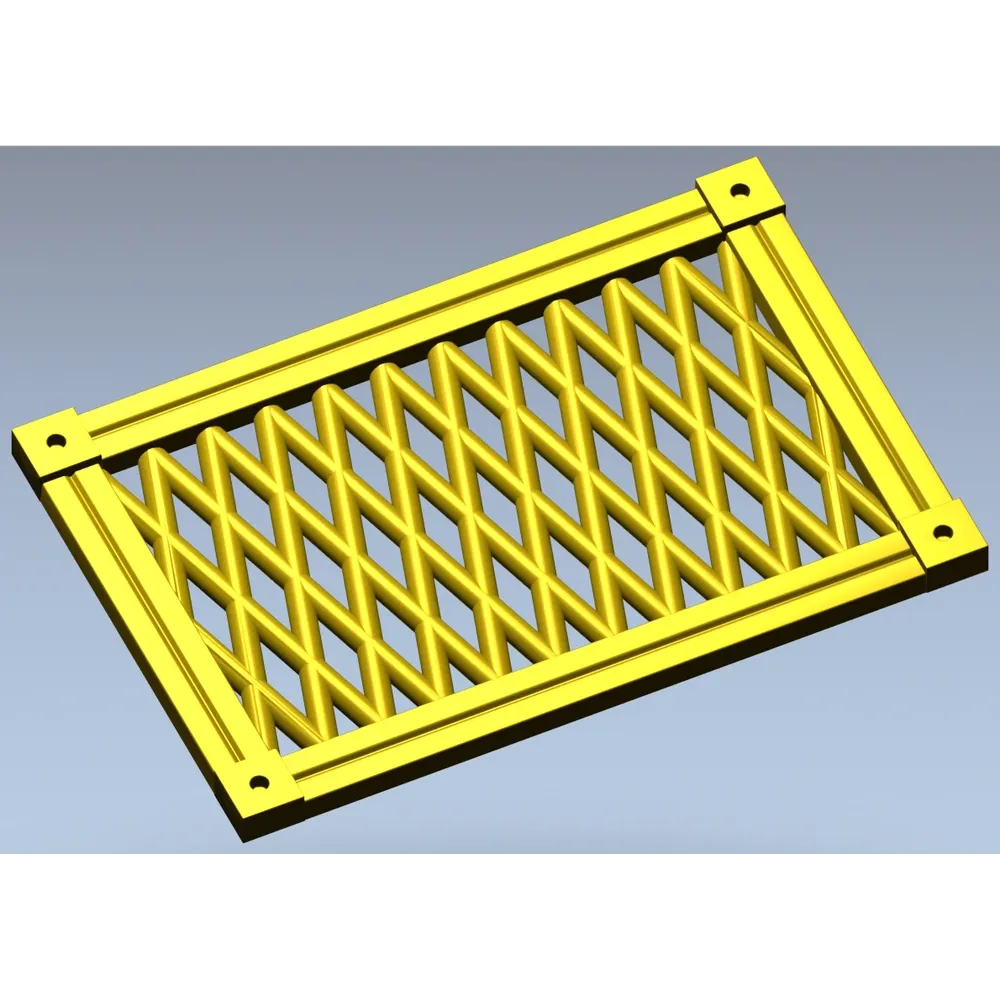

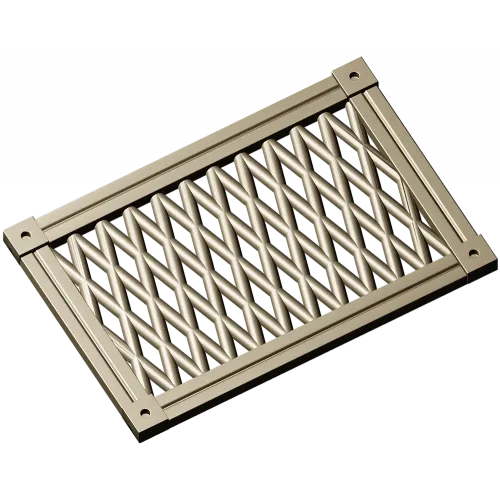

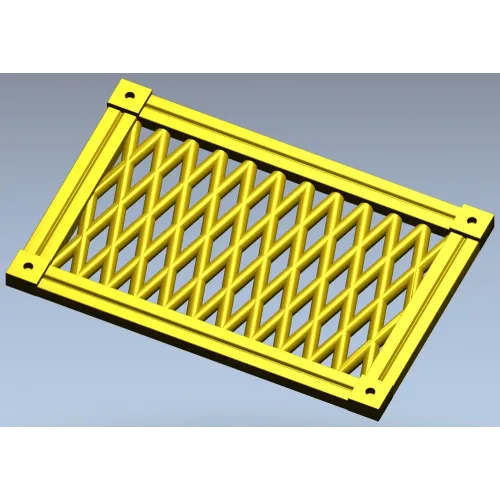

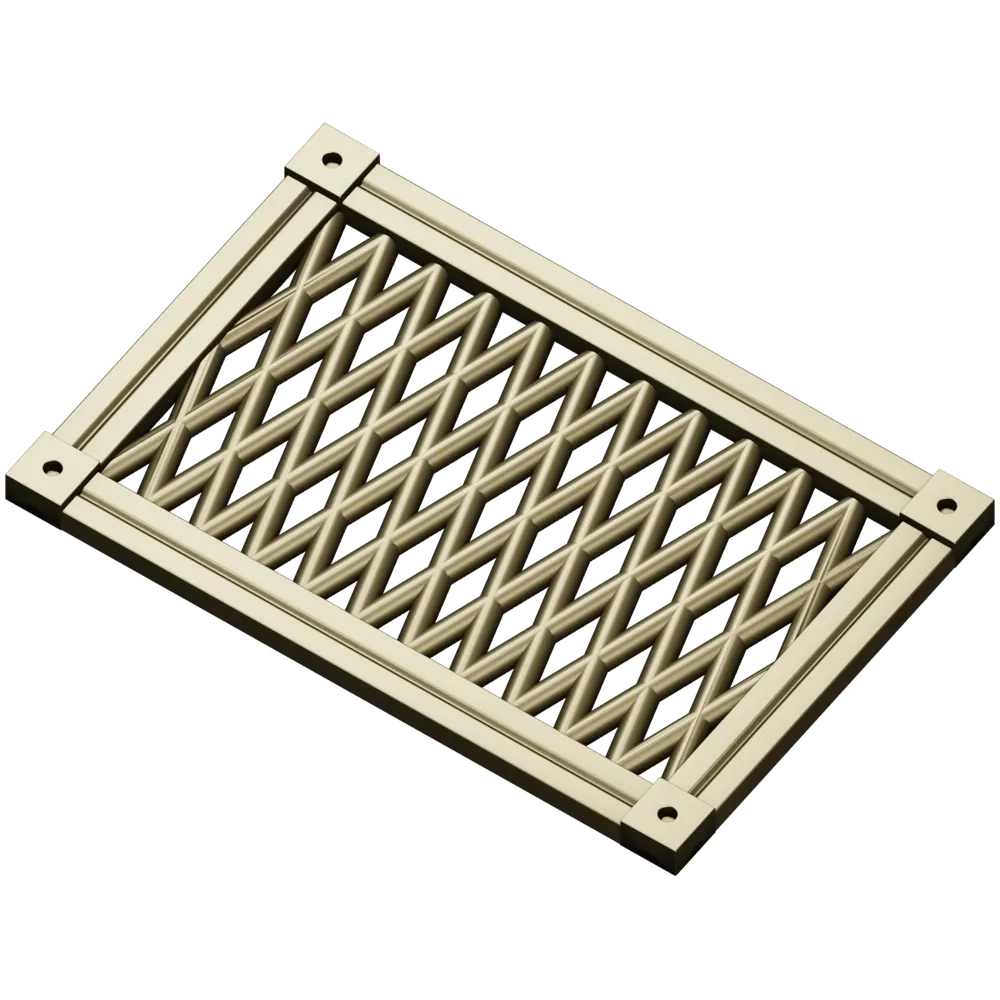

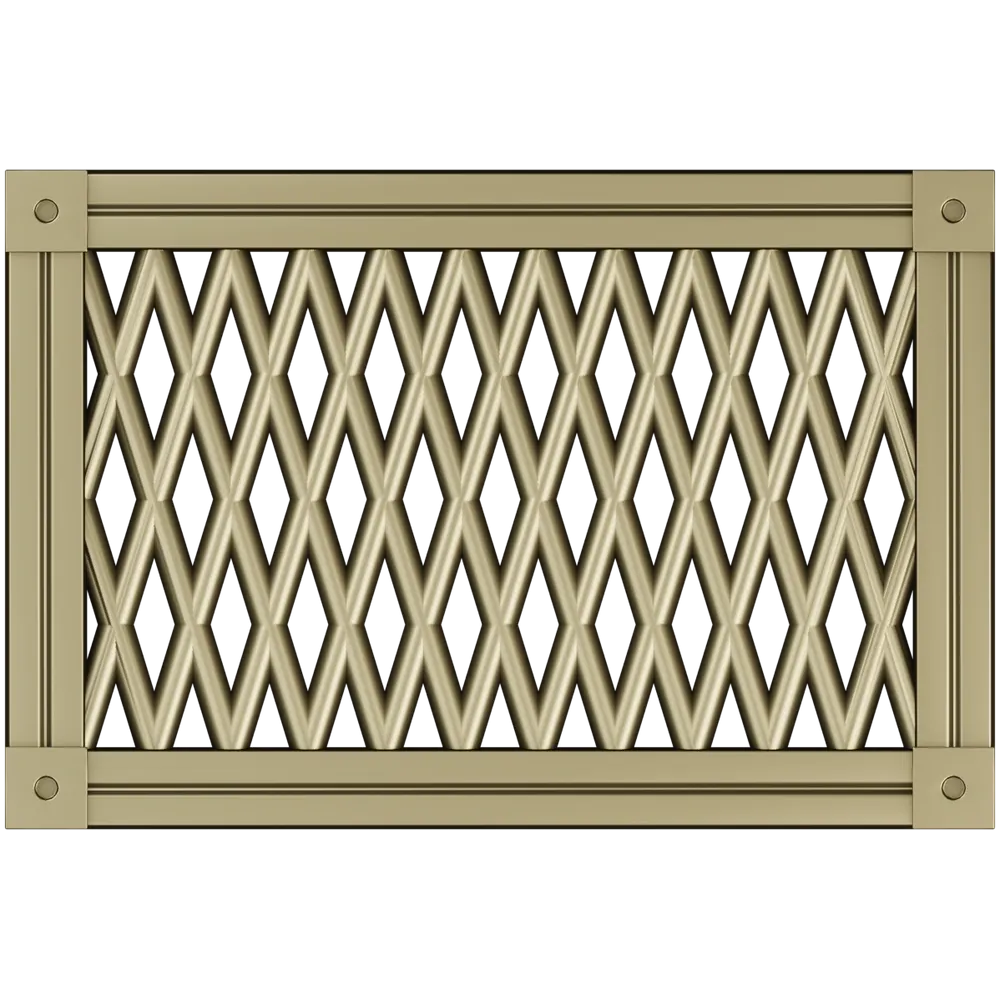

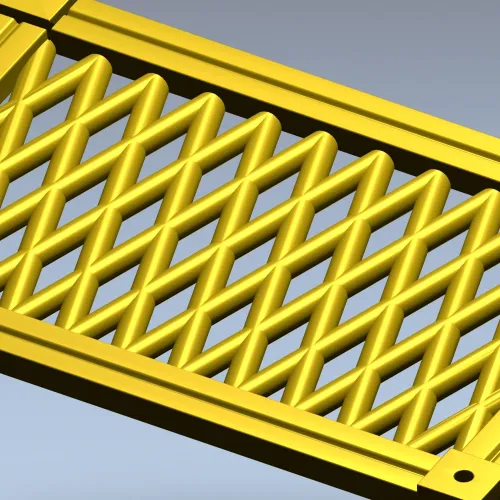

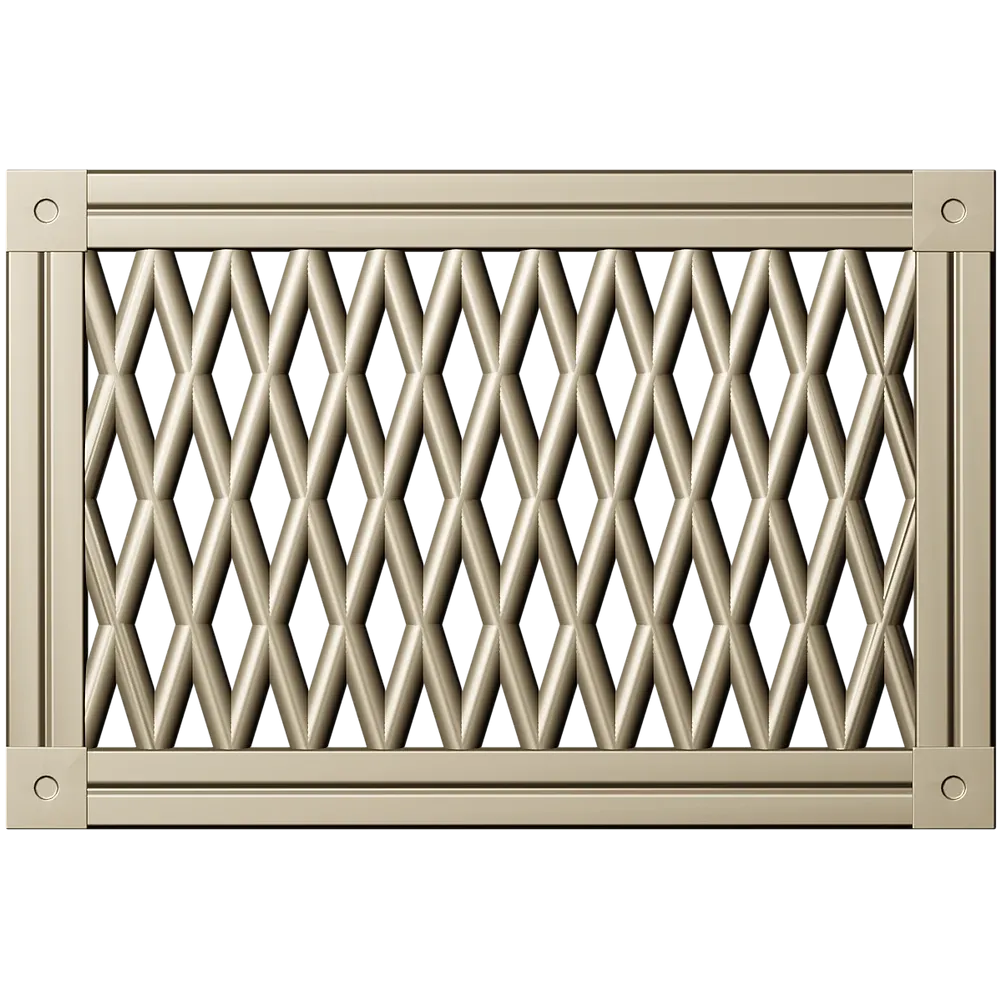

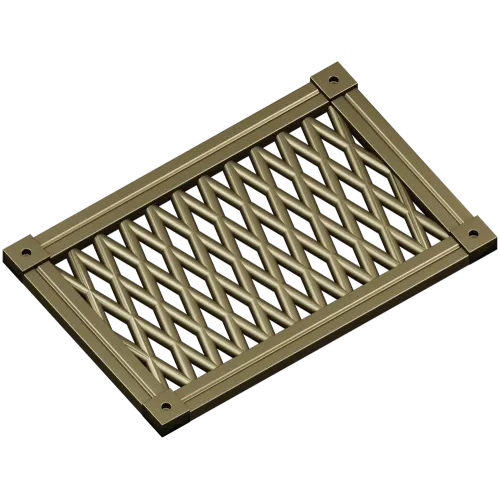

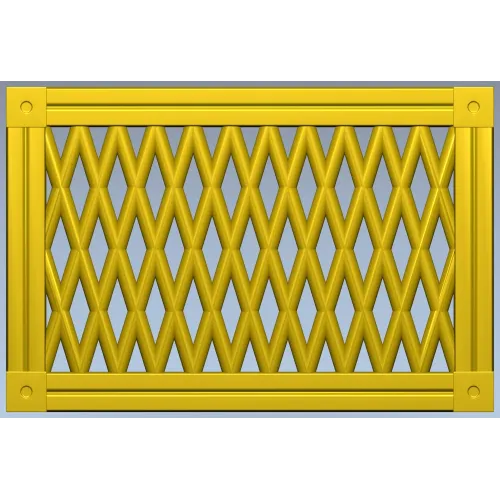

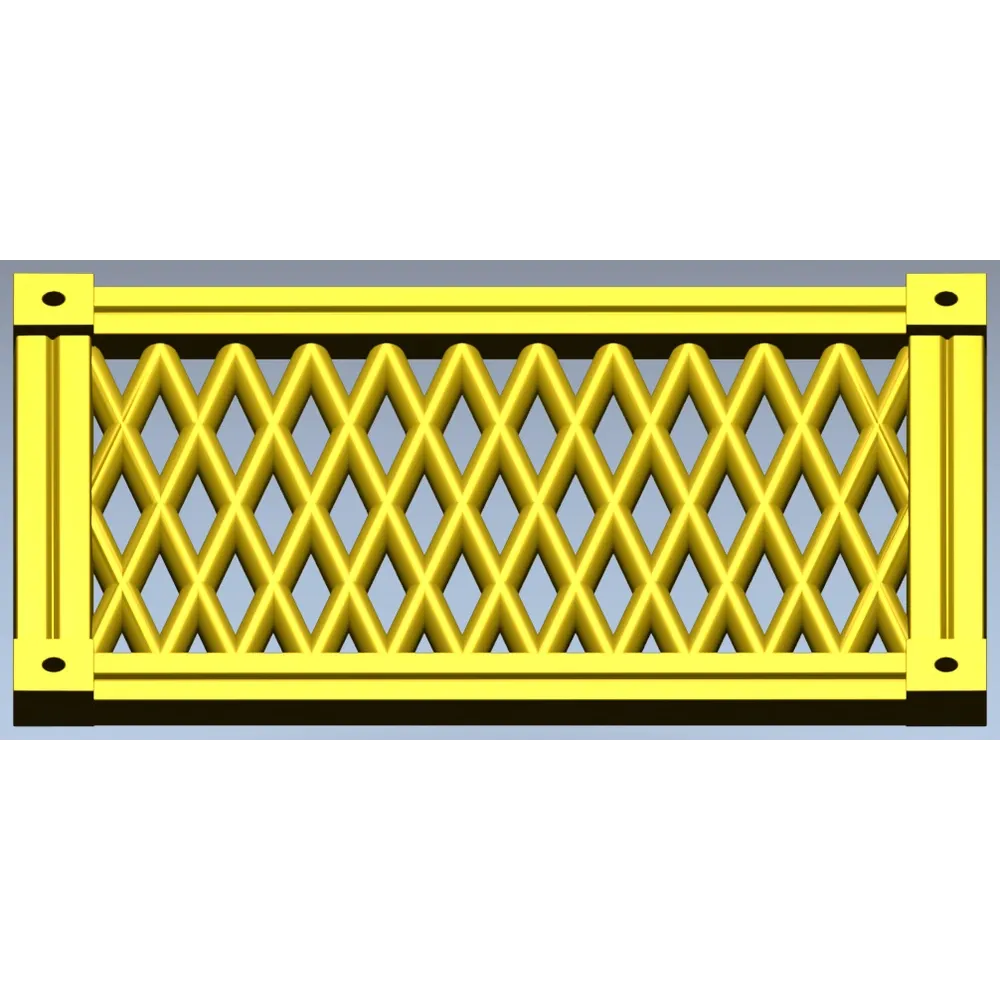

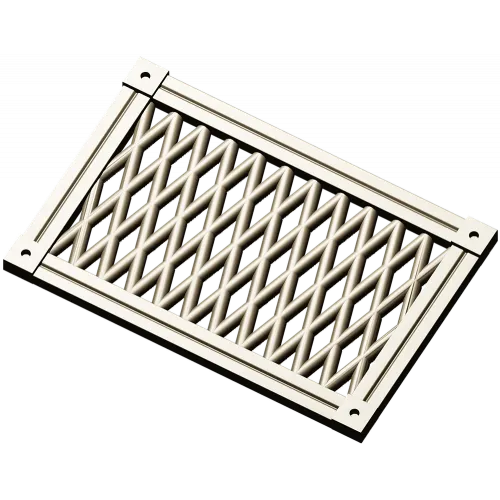

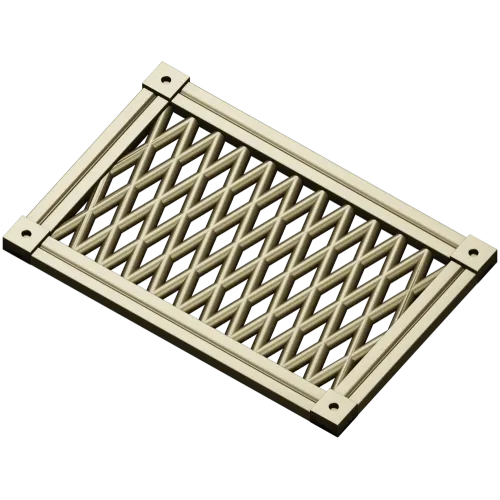

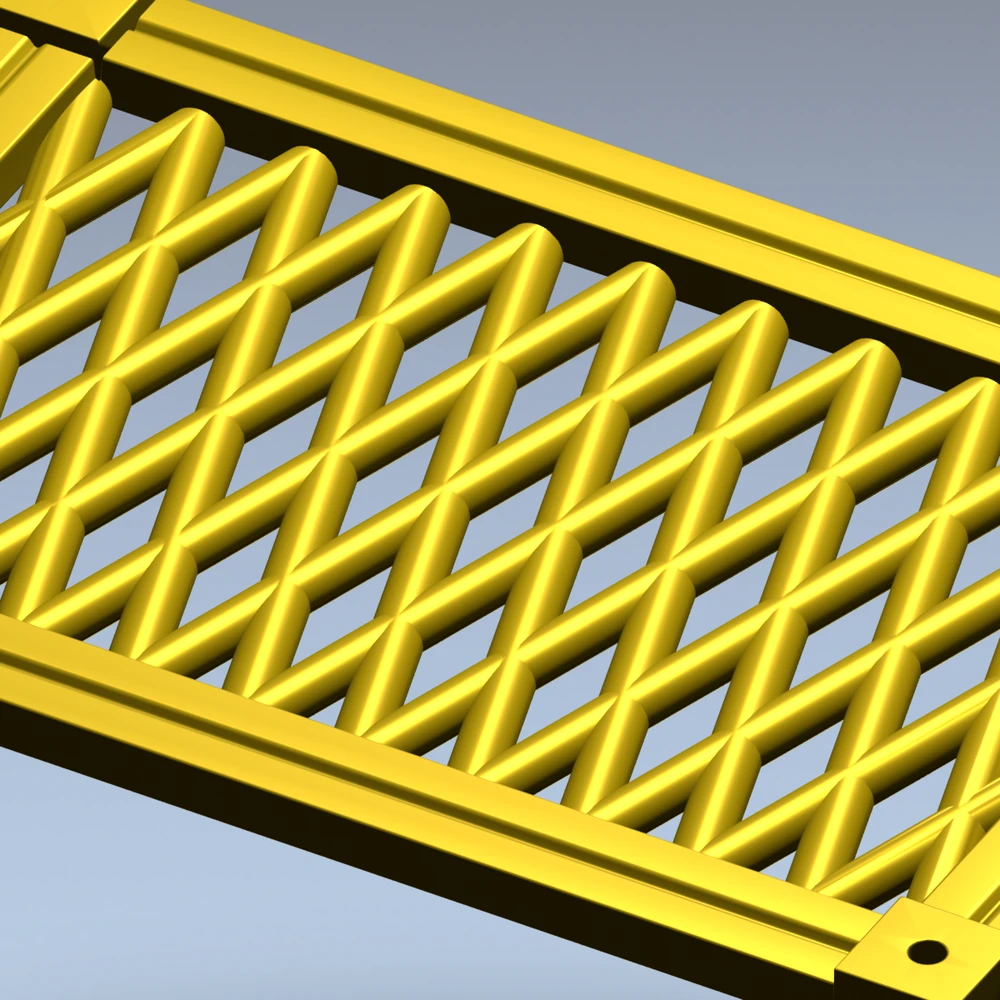

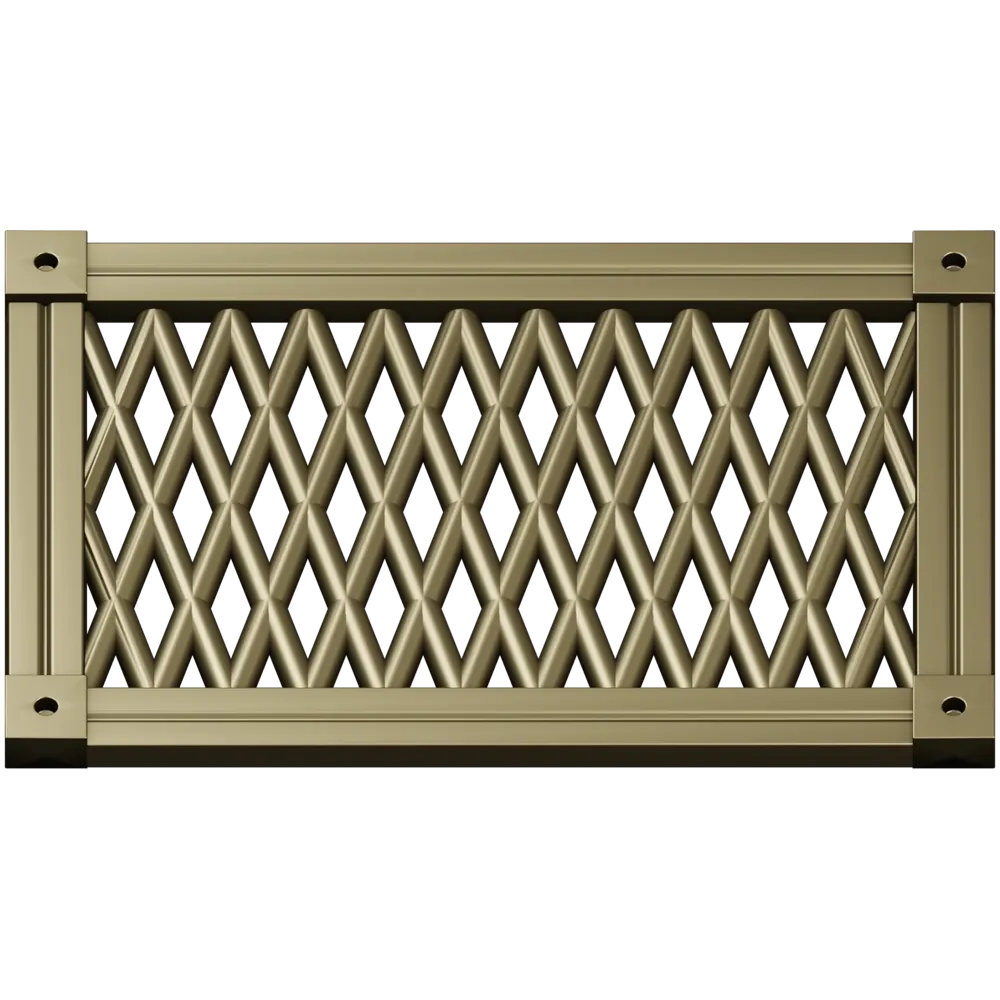

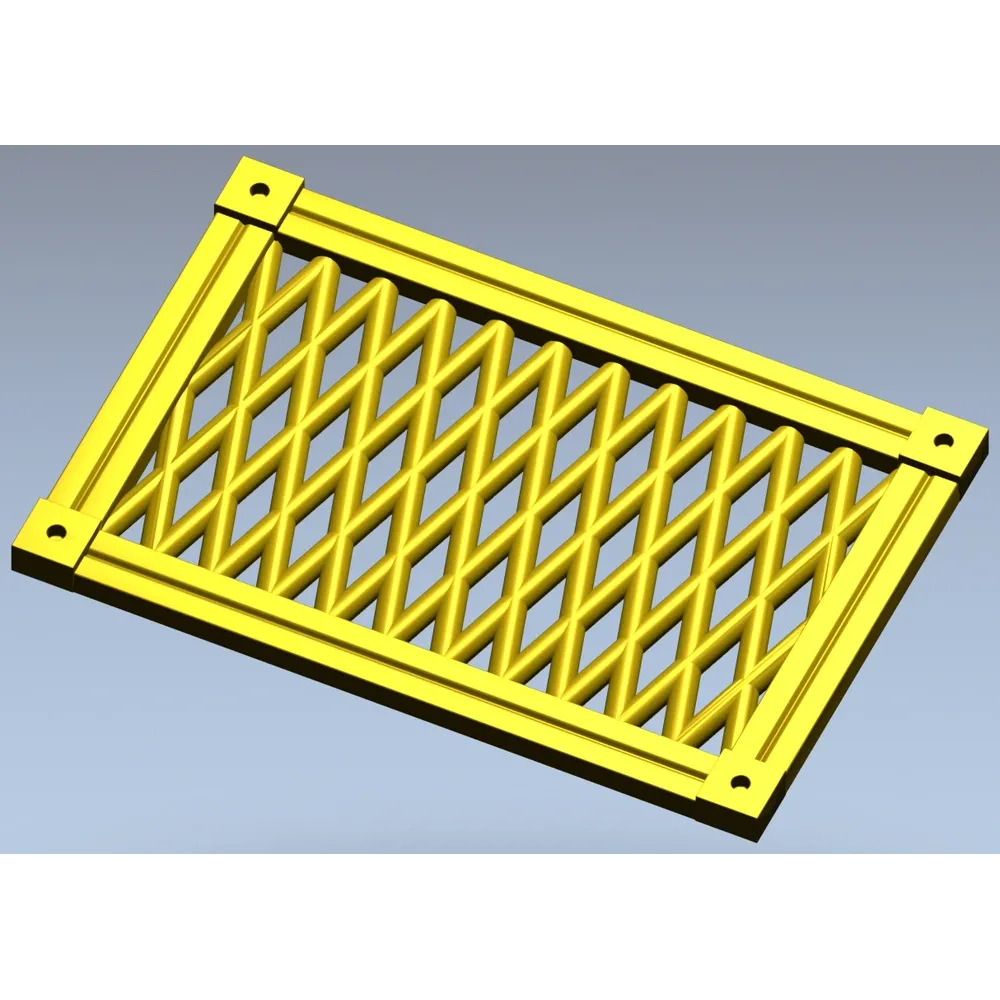

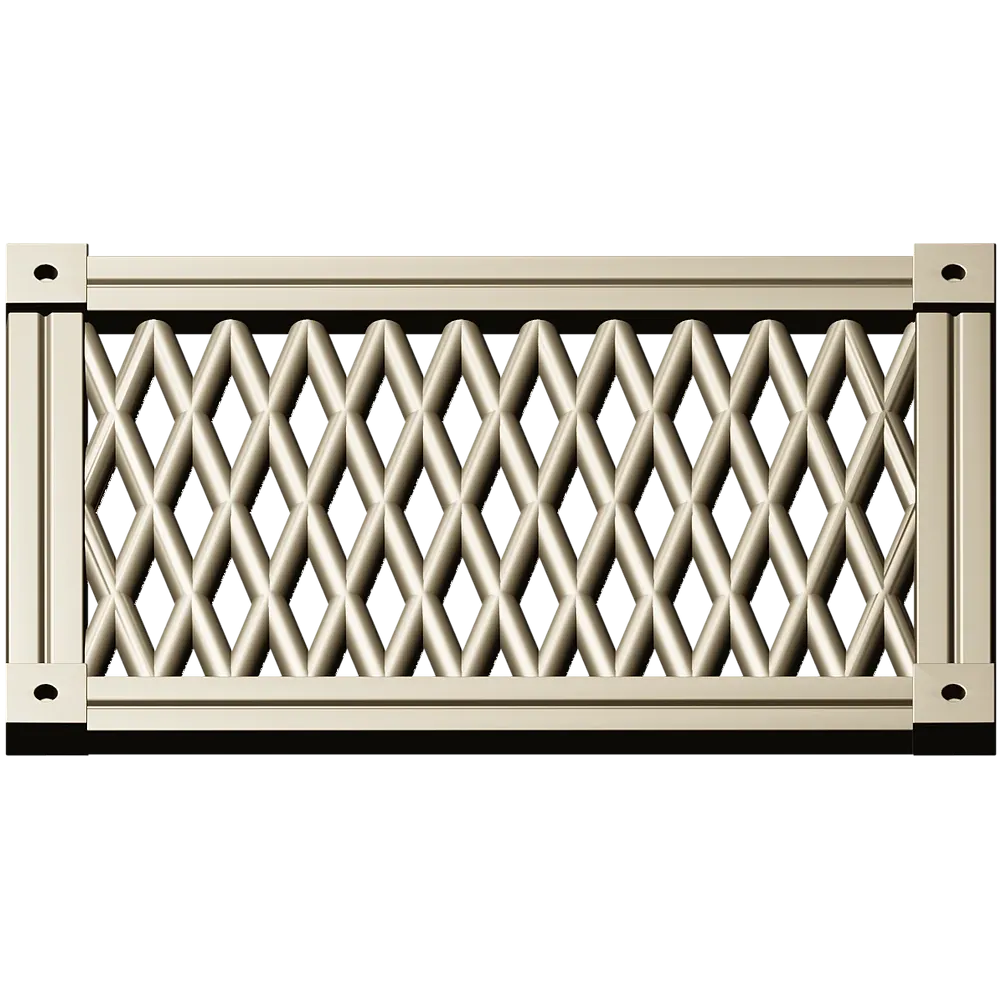

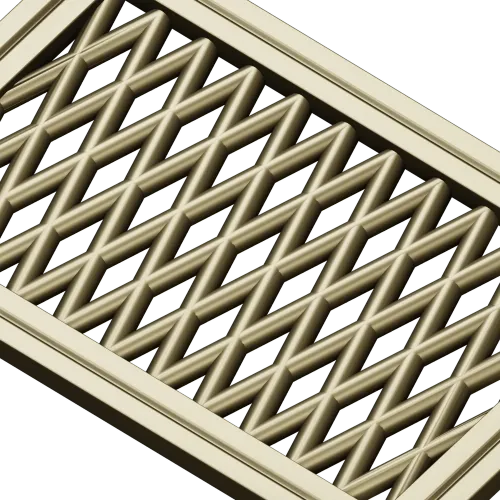

A finely detailed decorative lattice panel 3D model in STL format, designed for CNC milling to produce elegant grilles, vents or decorative inserts. The model presents a rectangular frame with subtle beveled bars and reinforced square corner plates with mounting holes. Interior features a repeating diamond (woven) lattice of rounded ribs that create deep relief and soft highlights when carved in wood or MDF. Thin side profile keeps material usage efficient while preserving structural depth. Ready for ArtCAM and similar CAM software, this stl 3d model for cnc is optimized for clean toolpaths and easy finishing. Instant download available after payment.

Review 6

5.0 Product total rating 6 reviews

R

Ravil Purchase Review 5.0

2 November, 2025

Used in a cabinet decorative panel — looks expensive and neat. Recommend to fellow craftsmen and designers.
S

Saveliy Purchase Review 5.0

27 June, 2025

Scaled for a non-standard opening: clean geometry, no intersections, uniform grid. CAM processed without errors, milling finish was smooth.
R

Roman Savelyevich Purchase Review 5.0

9 November, 2024

Quick in post-processing, holes matched the template, assembly took a couple of minutes.
L

Liliya Vasilyevna Purchase Review 5.0

16 February, 2024

Beautiful diamond pattern, STL sizes are convenient for quick scaling.
L

Luka Purchase Review 5.0

2 October, 2023

The mounting holes are precisely placed, installation required no extra fitting.
E

Ekaterina Antonovna Purchase Review 5.0

20 September, 2023

Fit well as a door screen — diamonds are neat, frame is sturdy, looks natural. Great toolpath optimization.
